Brick-Compatible Power Functions: Motors, Battery Boxes and Lights Explained
A build that moves is a different object from a build that sits. The first time a crane you designed actually lifts something, or a train pulls out of a station you laid down brick by brick, the hobby changes shape. Powered parts are how that happens, and they are far less complicated than the parts lists make them look.

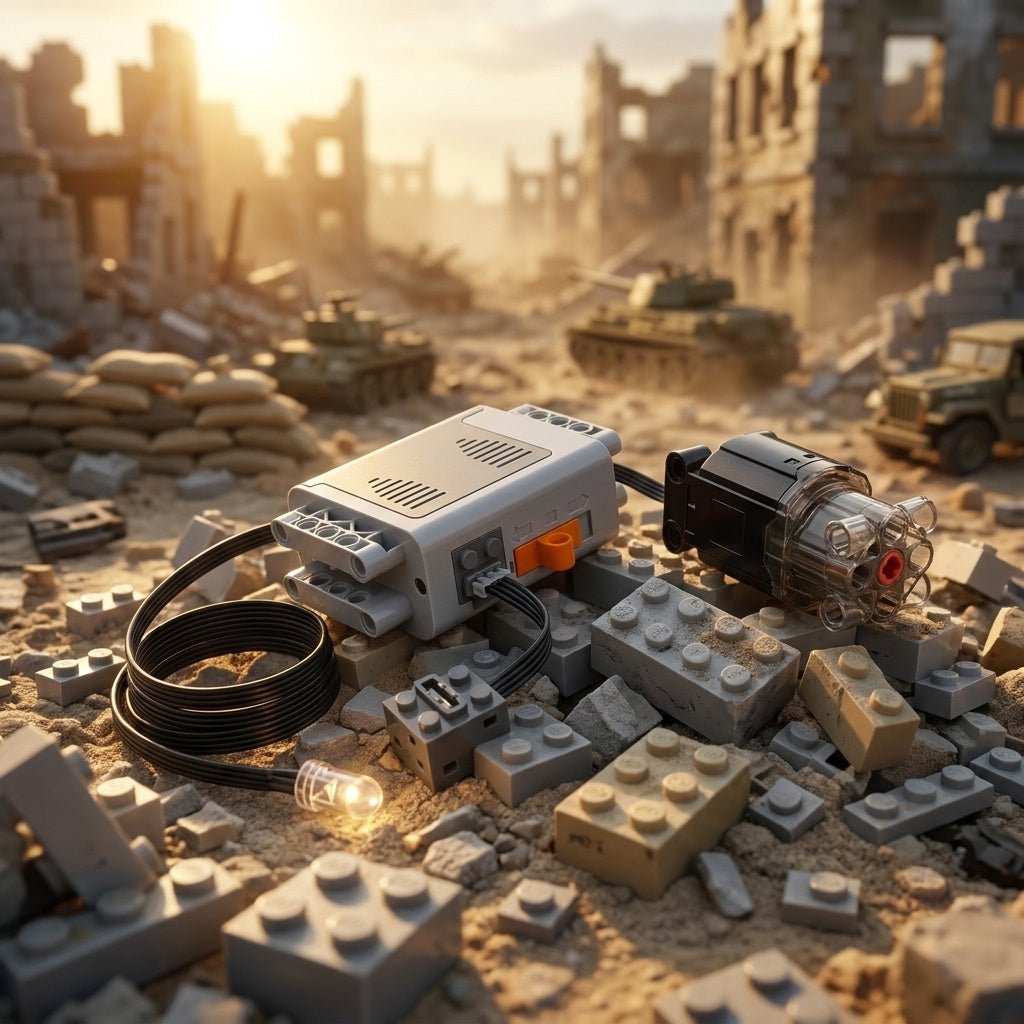

Everything in a brick-compatible motor system runs on the same idea: a standard plug. One connector style carries power from a battery box to a motor, a light cable, a receiver or an extension wire. Once you have seen the plug, the whole catalog stops being intimidating. It is three categories and one wire.
Every powered build needs exactly three things
Strip away the options and a working setup is always the same shape.
- A power source. A battery box. It holds the cells, carries an on and off switch, and puts out one or more connector ports.
- Something that uses the power. A motor if you want motion, an LED cable if you want light. Both plug into the same port.
- A way to reach it. Short runs plug straight in. Longer runs need an extension cord, sold in 15cm, 20cm, 25cm and 50cm lengths.
That is a complete build. Remote control, receivers and app modules are all additions to those three, not replacements for them.
Above: the grey M motor, the one most builds start with. The full range lives in power functions.
Motors: torque or speed, pick one
There is no best motor. There is a motor that suits the job, and the choice comes down to a single trade. A motor can turn slowly with force, or quickly with very little. Nothing does both.
The M motor, $15.99. Grey housing, cross-axle output, pin holes on the body for mounting inside a frame. This is the everyday choice: small vehicles, gear-driven mechanisms, a turning feature on a display piece. If you are buying your first motor and you do not yet know what you are building, buy this one.
The high speed L motor. Black housing, high RPM, low torque. Propellers, fans, spinning signage, fast light vehicles. Put it on a loaded crawler and it will stall. Put it on a fan blade and nothing else comes close.
The XL and monster motors. The heavy end. These are for builds carrying real weight: large vehicles, lifts, cranes with something actually on the hook. They draw more current, which is a battery decision as much as a motor decision.
The servo motor. Does not spin continuously. It turns to a position and holds it, which is what steering needs. A powered vehicle with a drive motor and no servo goes forward. One with both goes where you point it.
The train motor. Built into a wheeled housing rather than a block with an axle out of one face. It drives rails directly. If you are building track, this is the part, and the generic motors are not a substitute.
A motor assortment starts at $9.99 if you want to try two or three sizes against the same build before committing, which is honestly the fastest way to learn what torque feels like.
Battery boxes: AA now, lithium later
The power source is where most first builds go wrong, because the box is chosen on price and then the motor underperforms.
The AA battery box, $19.99. Light grey housing, orange toggle switch on one face, a green LED that tells you it is live, and pin holes on every face so it mounts into a frame in any orientation. Batteries are not included. This is the standard choice and it is the right one for most builds.
The rechargeable lithium box, $39.99. 7.4V, 900mA, charging cable in the box. Twice the price of the AA version, and worth it the moment you have a build you run often. A motorized display piece that gets switched on for visitors will eat through disposable AA cells faster than anyone expects. A rechargeable box pays for itself in roughly four or five battery changes.
The assortment, from $18.99. Covers the specialty cases: app-controlled boxes, remote-integrated packs, and the roller coaster box for ride builds.
Two practical notes. First, mount the box where the switch stays reachable after the bodywork goes on. This sounds obvious and it is the single most common rebuild. Second, if you are running an XL or monster motor, go lithium. The high-draw motors are noticeably more responsive on a box that can deliver the current.
Lights: the cheapest upgrade in the system
The LED light cable is $6.99 and it does more for a finished build than any single part at that price. One 2x2 brick-form connector plugs into the battery box. From it, a flat ribbon cable splits into two individual leads, each ending in a clear dome-top LED. The bulbs fit standard 1-stud round openings, so they drop into a headlight housing or a lamp post without modification.
Where the two LEDs go decides whether the build reads as lit or as a build with lights stuck on it. Headlights on a vehicle. One lead inside a modular building and one in the doorway. A pair at opposite ends of a platform rather than side by side. For display pieces rather than vehicles, our LED guide for lighting a minifigure display covers placement and glare in more detail, and the same principles apply here.
Remote control, when you want it
A battery box with a toggle gives you on and off. That is enough for a lit building and not enough for a vehicle you want to drive.
The 2.4G remote and receiver set adds proportional control at a distance. The receiver sits between the battery box and the motors, the remote talks to it, and you get speed and direction rather than full speed or stopped. For larger projects there is a 12-channel app remote, which is the option worth considering if one build has several independent functions, like a crane with a slew, a boom and a winch.
Add remote control after the mechanical build works on a toggle switch. Debugging a stalling gear train and an unfamiliar receiver at the same time is how projects get abandoned.
Three starter setups, with the actual cost
A lit building, $26.98. AA battery box at $19.99 plus one LED light cable at $6.99. No motion, no remote, and it transforms a modular build on a shelf. This is the setup to start with if you have never powered anything.
A motorized vehicle, $35.98. AA battery box at $19.99 plus the M motor at $15.99. Add an extension cord if the motor sits more than a few studs from the box. Drives forward and back on the toggle.
A driveable vehicle, $75 and up. Rechargeable lithium box at $39.99, M motor at $15.99, a servo for steering, and the 2.4G remote and receiver set. This is a real remote-controlled machine and the price reflects it.
Build the first one before the third. The skills stack, and a $27 lit building teaches you the connector, the switch placement and the cable routing that the $75 build depends on.
Four things to check before you order
The connector in the photo. Every part in this system uses the same plug, but if you are mixing in parts you already own from another source, compare the connector in the product photo against yours before ordering. Plug shape is the only compatibility question that matters here.
Batteries are not included. The AA box ships empty. Order cells at the same time or the build sits finished and dark on the table.
Torque versus speed, again. Decide which one the build needs before you pick the motor, not after. More than half of all powered-build disappointment is a speed motor doing a torque job.
Where the cable runs. Leave a channel for it. A flat ribbon cable needs about one plate of clearance and it will not bend sharply at the connector. Plan the route while the build is still open, which is the same discipline covered in MOC building techniques every builder should know.
Where powered parts fit in a bigger project
Powered functions are rarely the point of a build. They are the last ten percent that makes the other ninety read as finished. A diorama with a working light in one window tells a story that the same diorama unlit does not, and a vehicle that rolls under its own power gets picked up and looked at.
So plan the mechanism early and add the parts late. If you are designing from scratch, how to design a MOC from scratch covers leaving room for a motor before the structure closes up around it. For a static display piece that would benefit from one lit detail, the same rule holds: decide where the light goes before the walls close.
You will also need bricks to build the housing, the frame and the mounting points. Motors want a rigid structure around them, which usually means more plates and more basic bricks than you expect. Our guide to buying bulk bricks for MOCs breaks down the ratios.
Compatibility and safety
Every part here is brick-compatible, meaning it uses standard stud pitch, standard cross-axle output and a standard motor system connector, so it works alongside whatever you already own, from any maker. Nothing in this range requires a matching brand of brick.
On safety: battery boxes, motors and LED cables are electrical parts and they bring the usual rules. Keep batteries in the sealed compartment, do not run a motor stalled against a jammed gear for long periods, and check that the cells are the type the box specifies. Powered builds suit young builders from roughly eight upward with an adult on the first setup, and the small parts guidance in our age guide and safety article still applies to everything you build around them.
Where to start
Buy the AA battery box and one LED light cable. Light something you have already built. It costs $26.98, it takes ten minutes, and it tells you more about how the system works than any amount of reading.
Then browse power functions for the motor that matches your next project, pick up bulk bricks for the frame it needs to sit in, and look through builds if you would rather start from a kit and motorize it than design the whole thing yourself.
